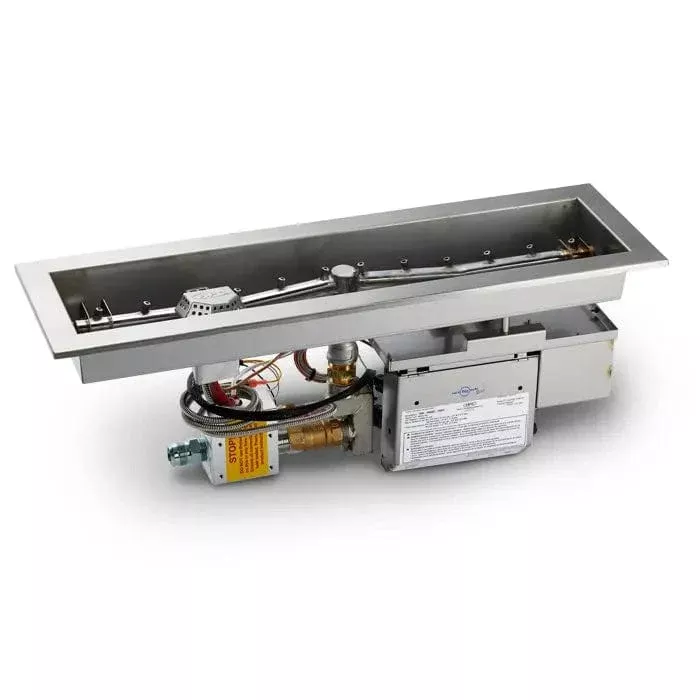

Linear Trough HPC Fire Pit Insert MLFPK24 TRGH-FLEX-LP-ST Product Details
These certified gas fire pit inserts incorporate a whistle-free flex line between the gas valve and burner pan offering insert flexibility and simpler installation.
Includes: Trough pan, T-Burner, bracket, spider guard screen, and key valve.
How It Works
Start-Up: This is done by lighting a long-stem lighter next to the perimeter of the burner then slowly opening the key to the valve. Leave the key in the valve during use.
Operation: Flame height may be adjusted by turning key to valve- counterclockwise provides more flame, clockwise lowers flame.
Shut Down: To turn OFF the fire pit simply turn the key to the valve clockwise to the OFF position. Remove key.
Features:
- Available in 24″, 36″, and 48″ Models with Small Tanks.
- Fully Assembled and ready to install.
- Flex Line configuration provides versatile and simple installation.
- Valve mounting bracket included- for safe mounting of control have.
- Flame height is adjustable using the key valve.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Optional Install & Controls: Paver Block Bracket, Key Extension Kit, Long Keys, and Spark Ignition Kit.
- Made of 304, 18 gauge Stainless Steel
- The spun design adds rigidity
- Welded gas fitting for strength
- Weep holes for drainage
Purchase the HPC Fire Linear Trough Fire Pit Insert MLFPK24 TRGH-FLEX-LP-ST here in Flame Authority!
Manuals
Manuals:
- Installation Manual
Need assistance? Talk to an Expert at +1-800-923-4556 or email: [email protected] to get the best-suited Fire Pit Burner Kits for your needs.
Specifications
Specifications:
- Model:
- MLFPK24 TRGH-FLEX-LP-ST
- TOR-MLFPK24 TRGH-FLEX-LP-ST
- Dimensions: L-24″ x W-7.9″ x D-2.5″
- Max BTU: 50,000
- Nozzle BTU: 65,000
- Burner: 24″ T-Burner Standard / Torpedo
- Gas Type: Liquid Propane
- Ignition Style: Match Lit
- Required Items: Lava Rock / Rolled Lava Stone (1 bag), River Rock (1 box), Fire Glass (20 lb), Flex-Form Install Collar (1 box)
- Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.
- Warranty: Lifetime warranty on burners
